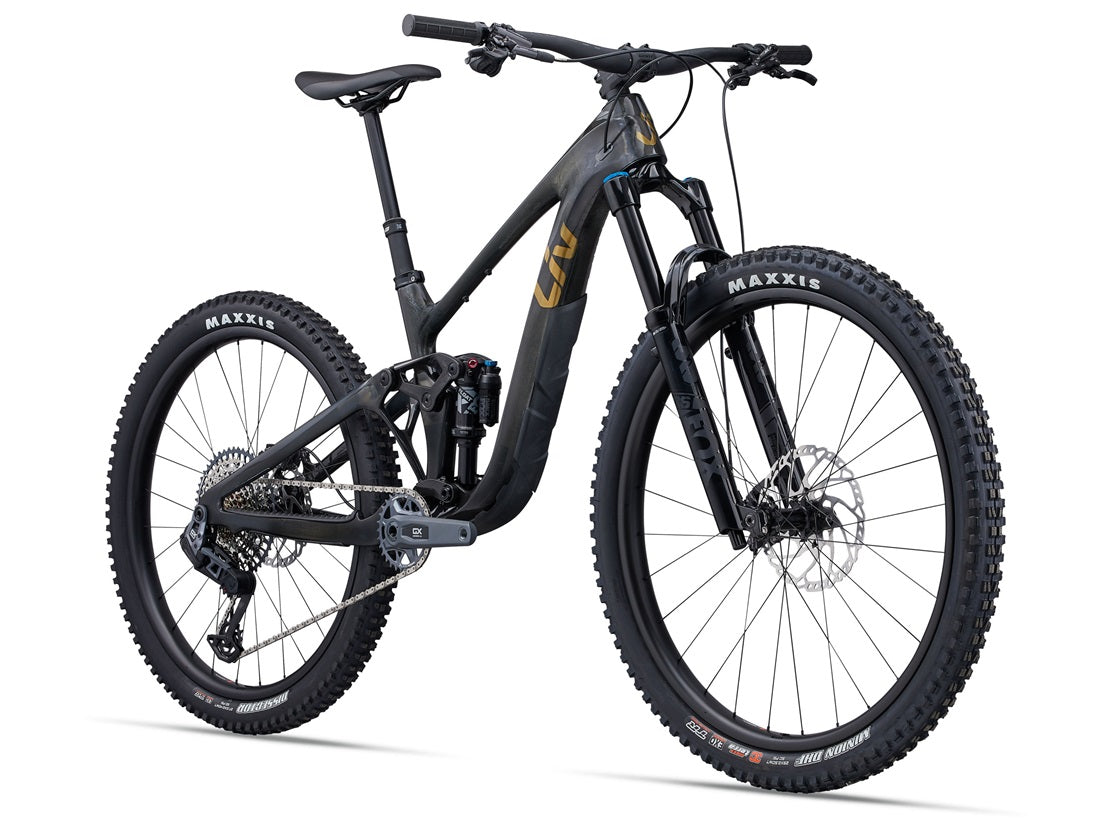

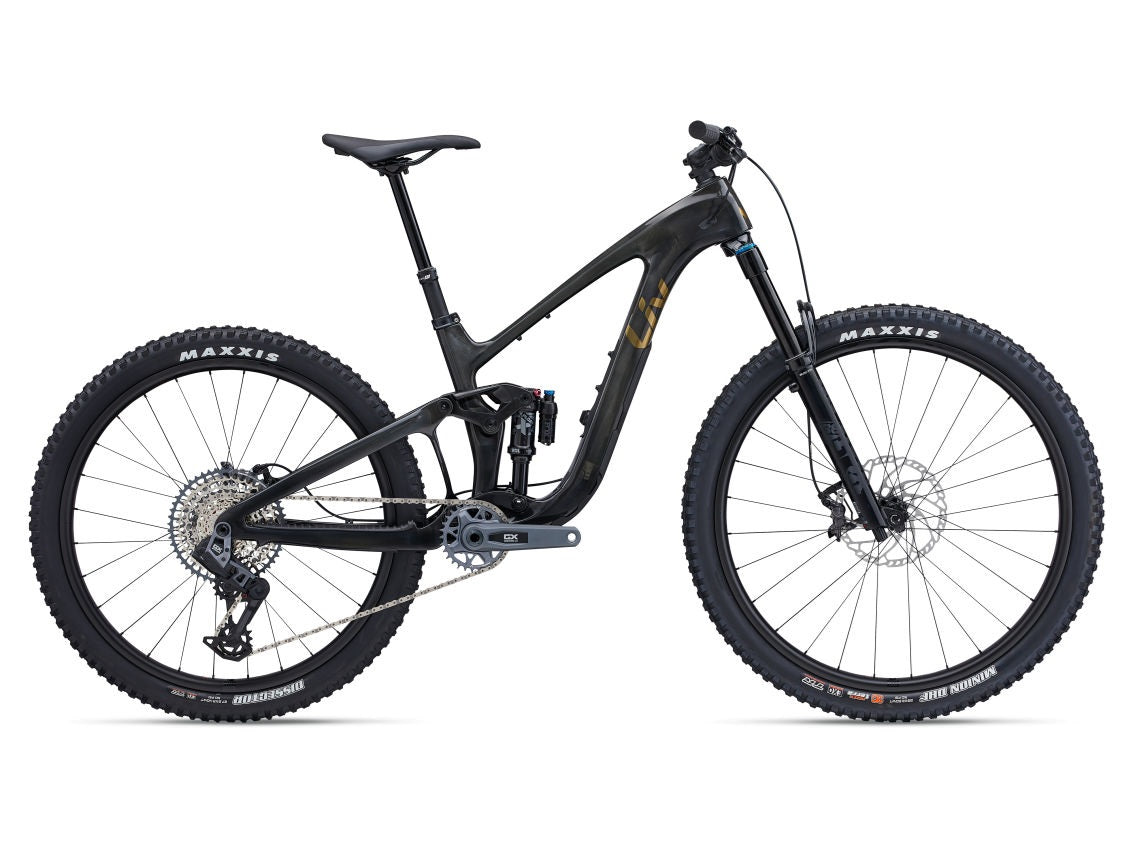

The exceptionally versatile Liv Intrigue X Advanced 1 Full-Suspension Mountain E-Bike was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X Advanced delivers extra performance and fun.

Key Performance Factors

• Performance Mid Travel Trail - Constructed with lightweight Advanced-grade composite for an agile, responsive ride, the frame also boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.
• Adjustable Frame Geometry - For ultimate adjustability, the Intrigue X Advanced features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only
• Best of Both Wheels - Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L

Specifications

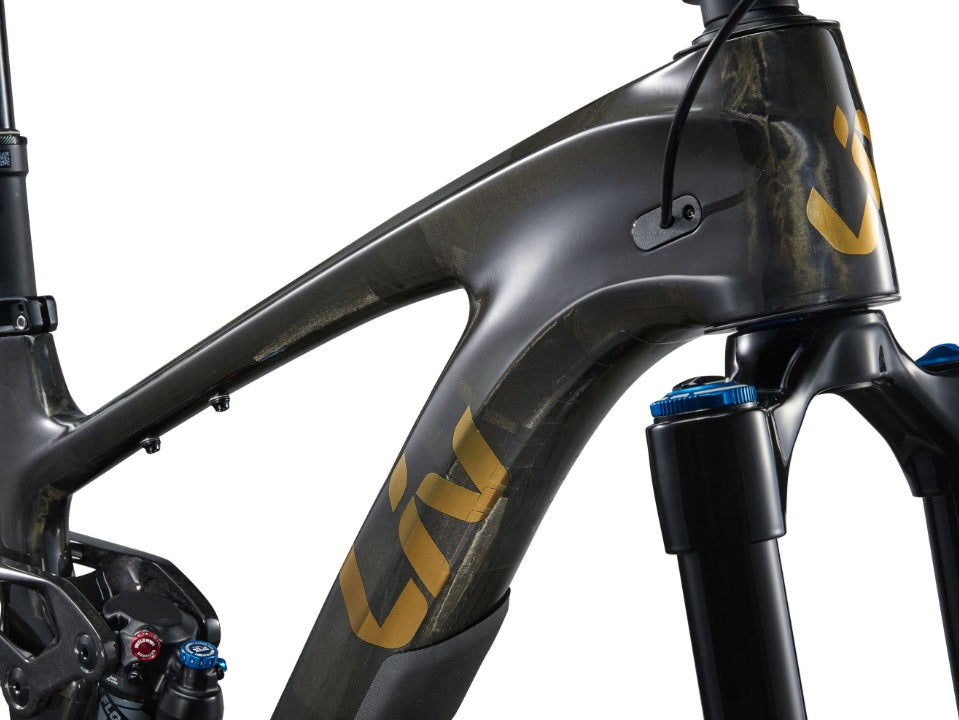

• Frame - Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage

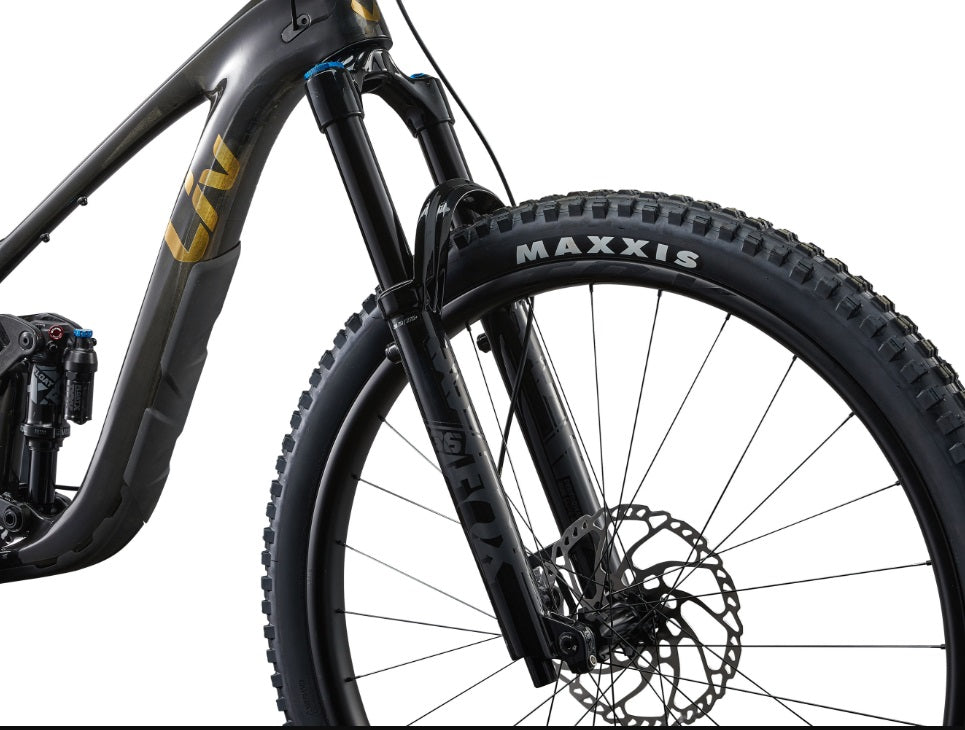

• Fork - Fox 36 Performance Elite, 150mm, Grip 2 damper, Boost 15x110 Kabolt X, tapered, 44mm offset
• Shock - Fox Float X Performance Elite, 185x52.5, custom tuned for Liv
• Handlebar - Giant Contact SLR TR35, 20mm rise, composite XS: 760mm, S: 760mm, M: 760mm, L: 780mm
• Grips - Liv Tactal Pro Single Lock-on XS/S: 120mm M/L: 130mm
• Stem - Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm

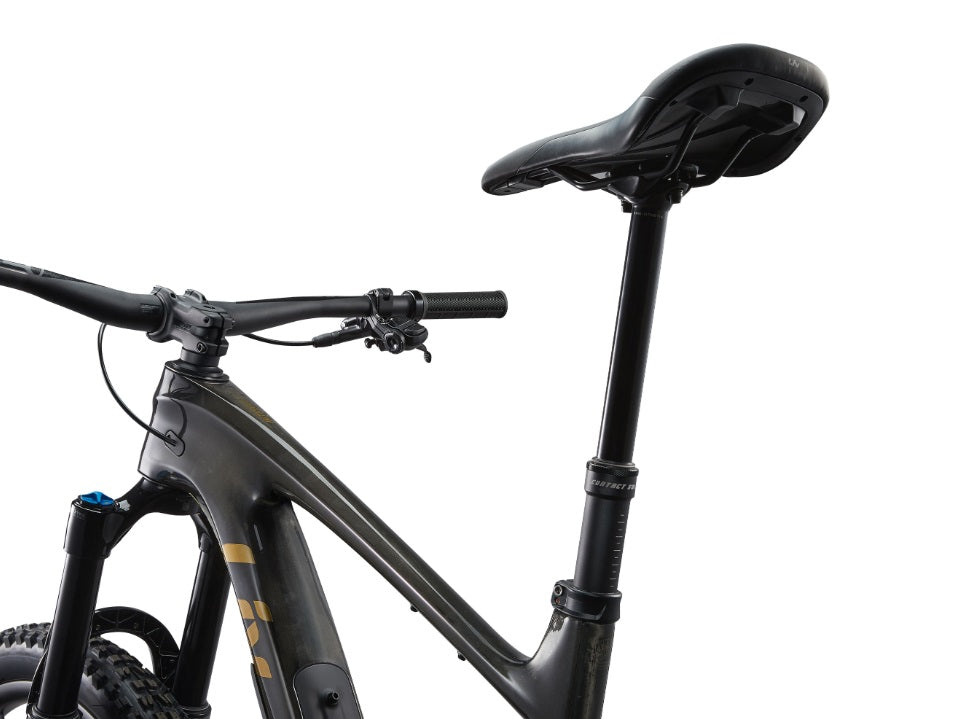

• Seatpost - Giant Contact Switch, adjustable dropper, remote XS: 140-170mm travel / 30.9 x 470mm S: 140-170mm travel / 30.9 x 470mm M: 170-200mm travel / 30.9 x 530mm L: 170-200mm travel / 30.9 x 530mm
• Saddle - Liv Sylvia
• Pedals - Platform
• Shifters - SRAM AXS Pod, 1x12
• Front Derailleur - N/A
• Rear Derailleur - SRAM GX Eagle, T-Type AXS
• Brakes - Shimano XT M8120, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm
• Brake Levers - Shimano XT BL-8100

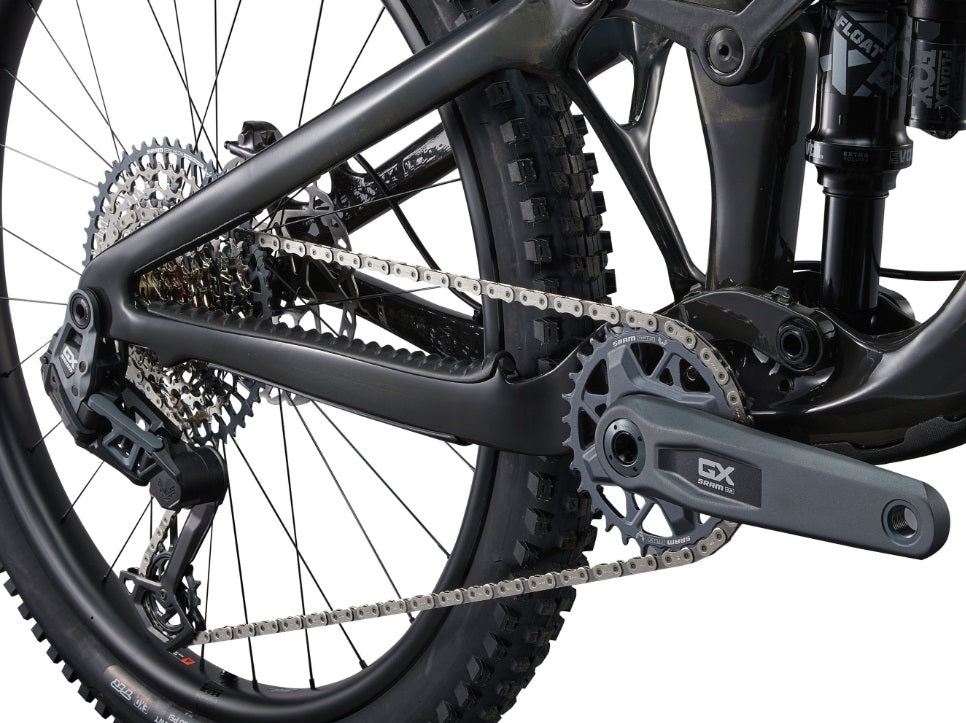

• Cassette - SRAM GX CS 1275 T-Type, 10x52
• Chain - SRAM GX T-Type
• Crankset - SRAM GX T-Type, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm
• Bottom Bracket - SRAM DUB, press fit
• Rims - Giant TRX carbon WheelSystem
• Hubs - [Front] Giant MTB alloy, 6-bolt, [Rear] Giant MTB alloy, 3-pawl driver, 6-bolt
• Spokes - Sapim
• Tires - Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
• Extras - 3M tailgate protector, tubeless prepared, integrated down tube storage bag, max tire size 2.5", max chainring size 34t
• Weight - 13.75kg (30lbs 05oz) - based on size Small

*Specifications subject to change without notice

• Mack Cycle recommends that you have your new Liv bike assembled at your local bike store.  Your store will charge an assembly fee.
