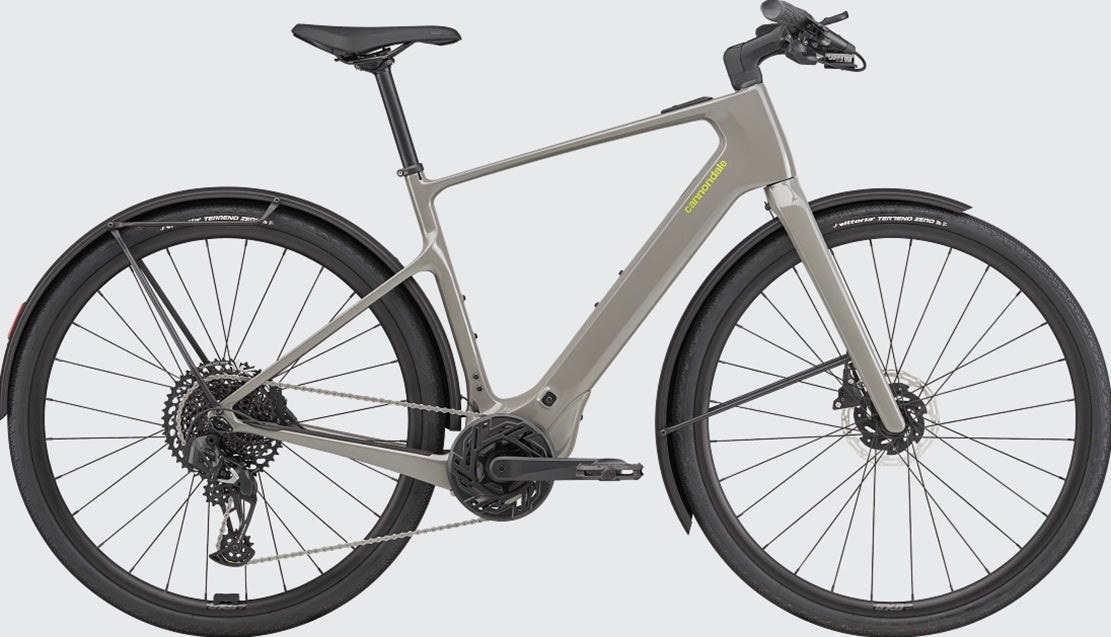

Highlights

• Race-derived, lightweight carbon frameset
• Light, silent, Bosch SX Sprint 28-mph drive system, with a 400Wh battery
• Wireless electronic SRAM Eagle 12-speed shifting
• Grippy, fast-rolling 700x38c Vittoria tires

Specifications

• Platform - Tesoro Neo Carbon

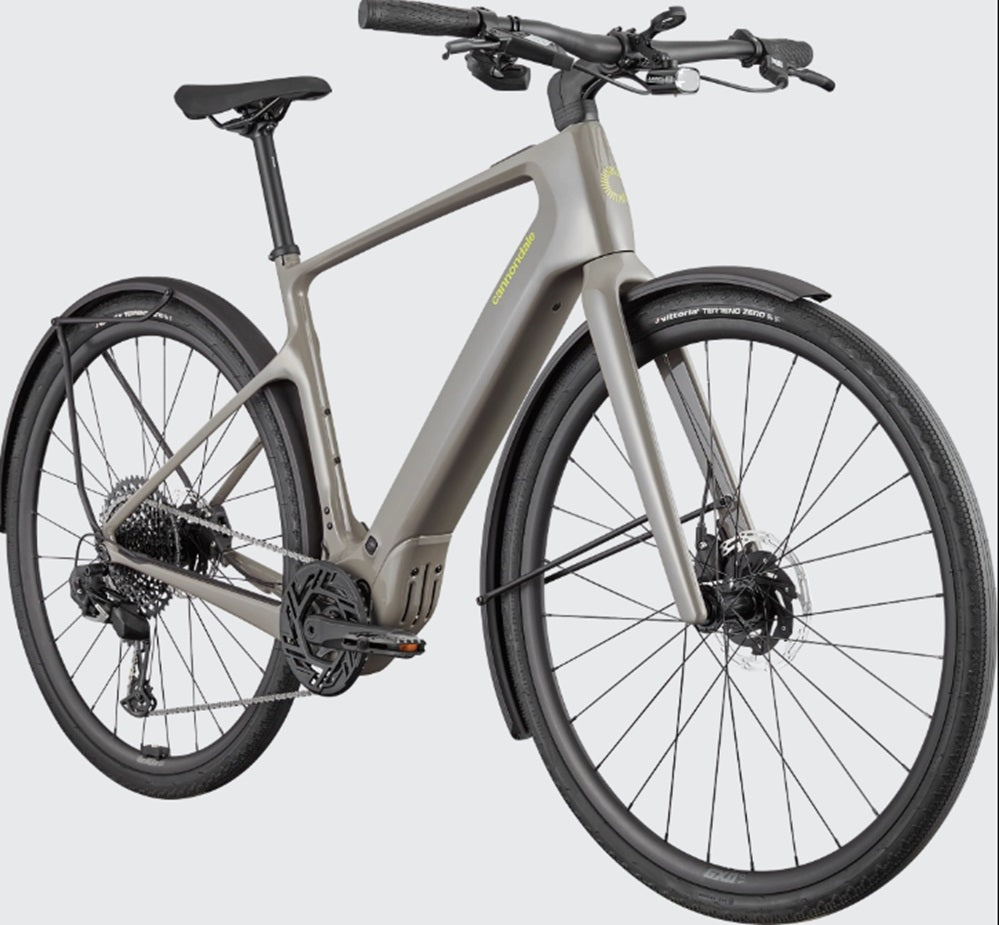

• Model Name - Tesoro Carbon 1
• Model Code - C66124U

Frameset

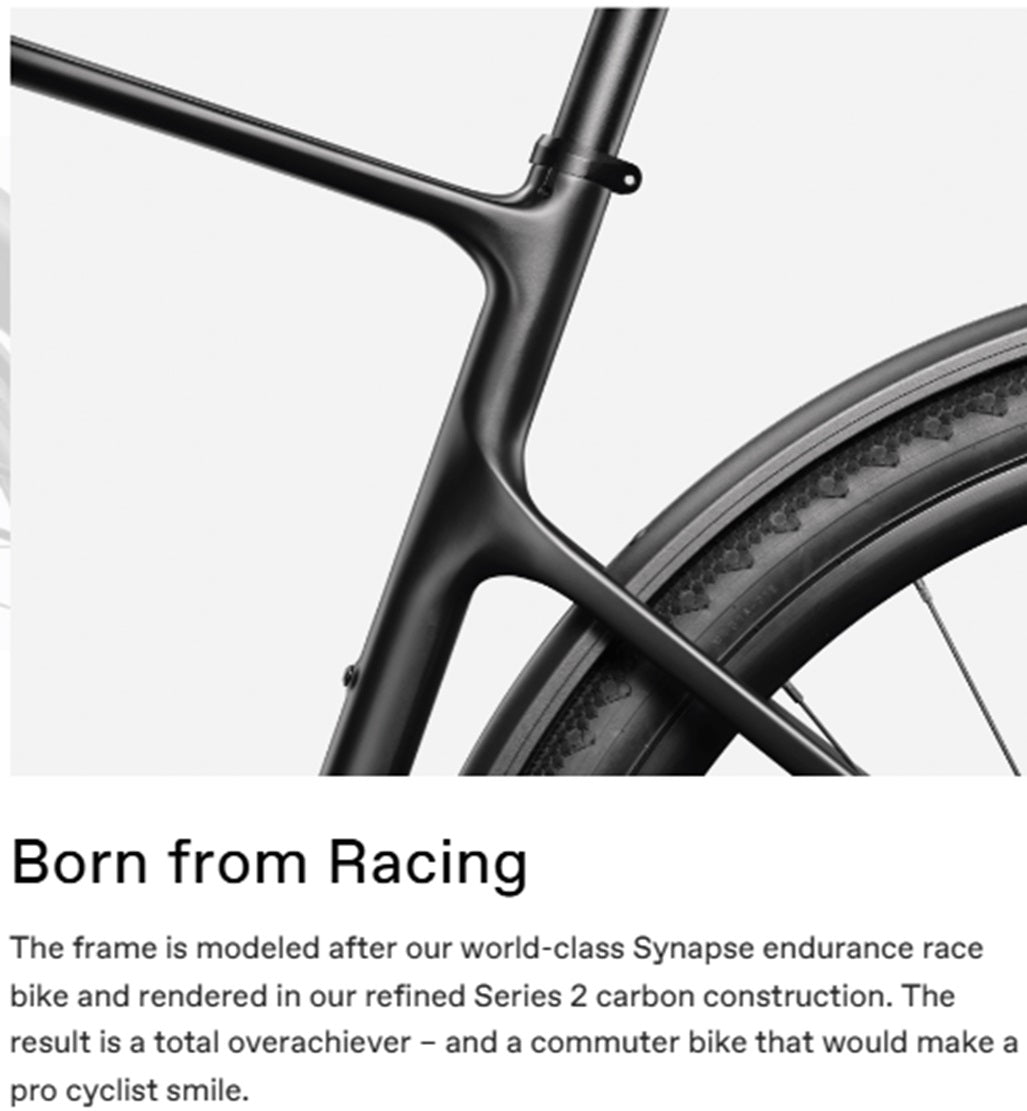

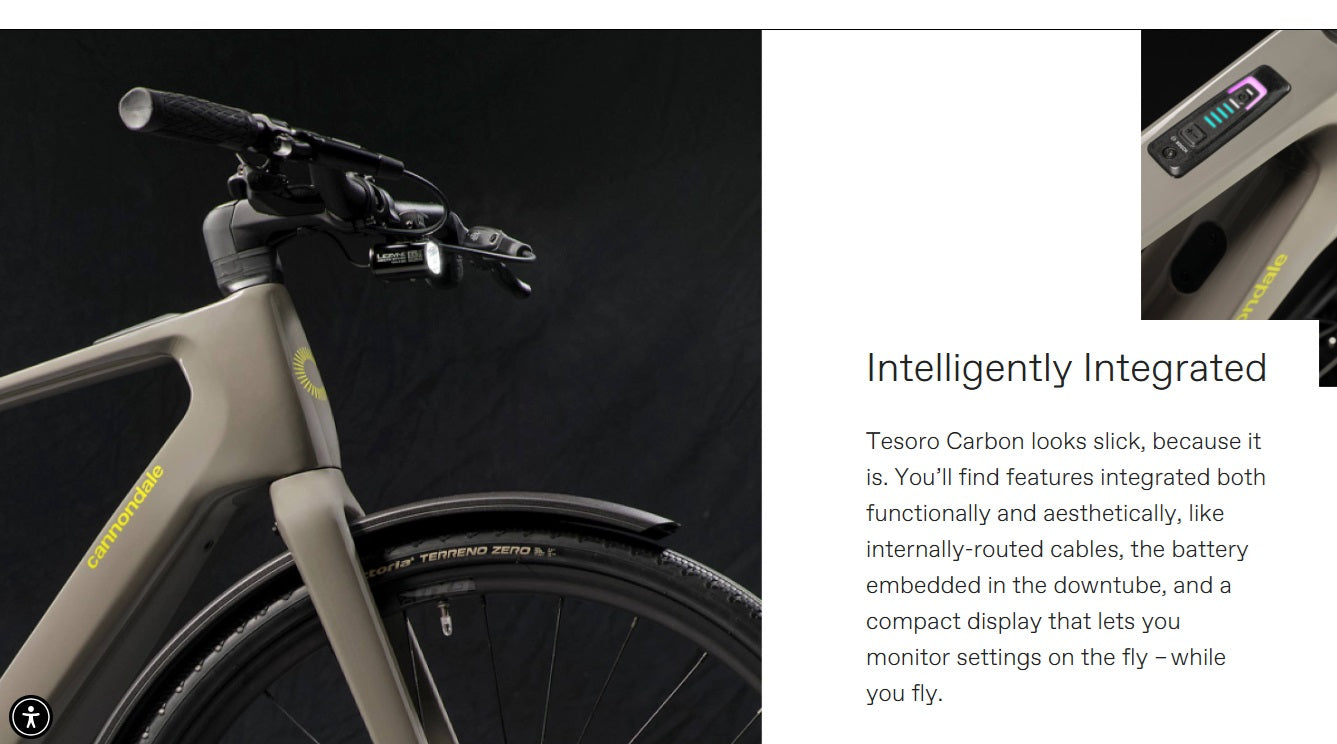

• Frame - Tesoro Carbon, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, removable kickstand mount (40mm Pletscher-style)
• Fork - Tesoro Carbon, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle
• Headset - Integrated, 1-1/8" - 1.5"

E-System

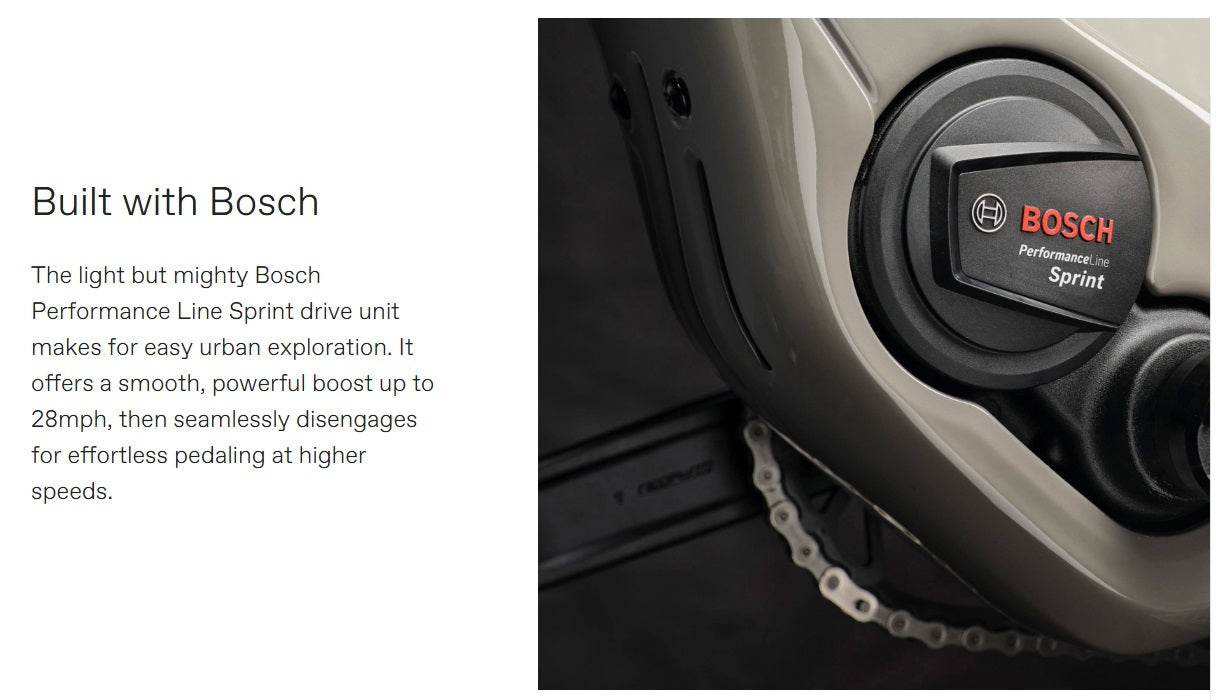

• Drive Unit - Bosch Performance Line Sprint, 28mph
• Battery - Bosch Compact Powertube 400Wh
• Charger - Bosch 2A
• Display - Top-tube System Controller w/ mini remote

Drivetrain

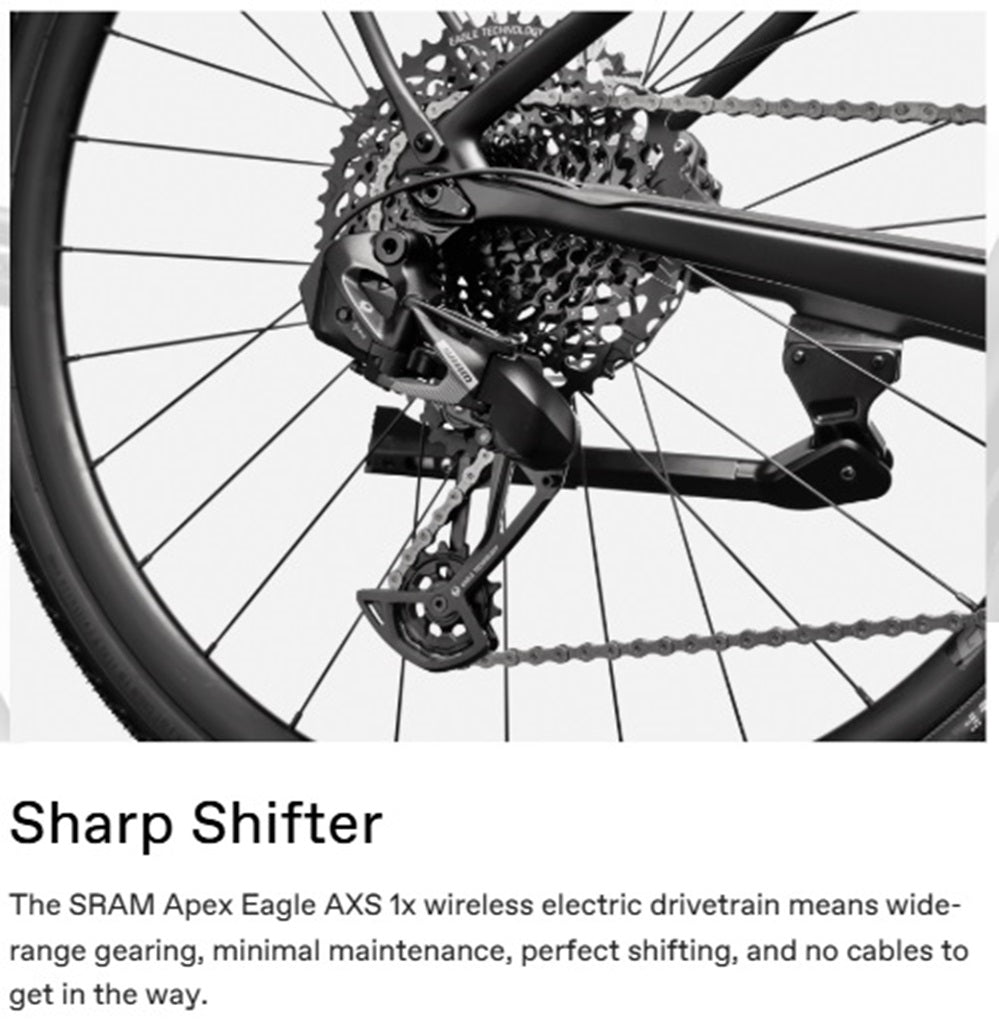

• Rear Derailleur - SRAM X1 Eagle AXS wireless electronic
• Shifters - SRAM GX Eagle AXS Controller, wireless
• Chain - SRAM NX Eagle, 12-speed
• Crank - FSA Bosch E-Bike, SRAM Direct Mount, 38T
• Rear Cogs - SRAM Eagle X-GLIDE 1275, 10-50, 12-speed

Brakes

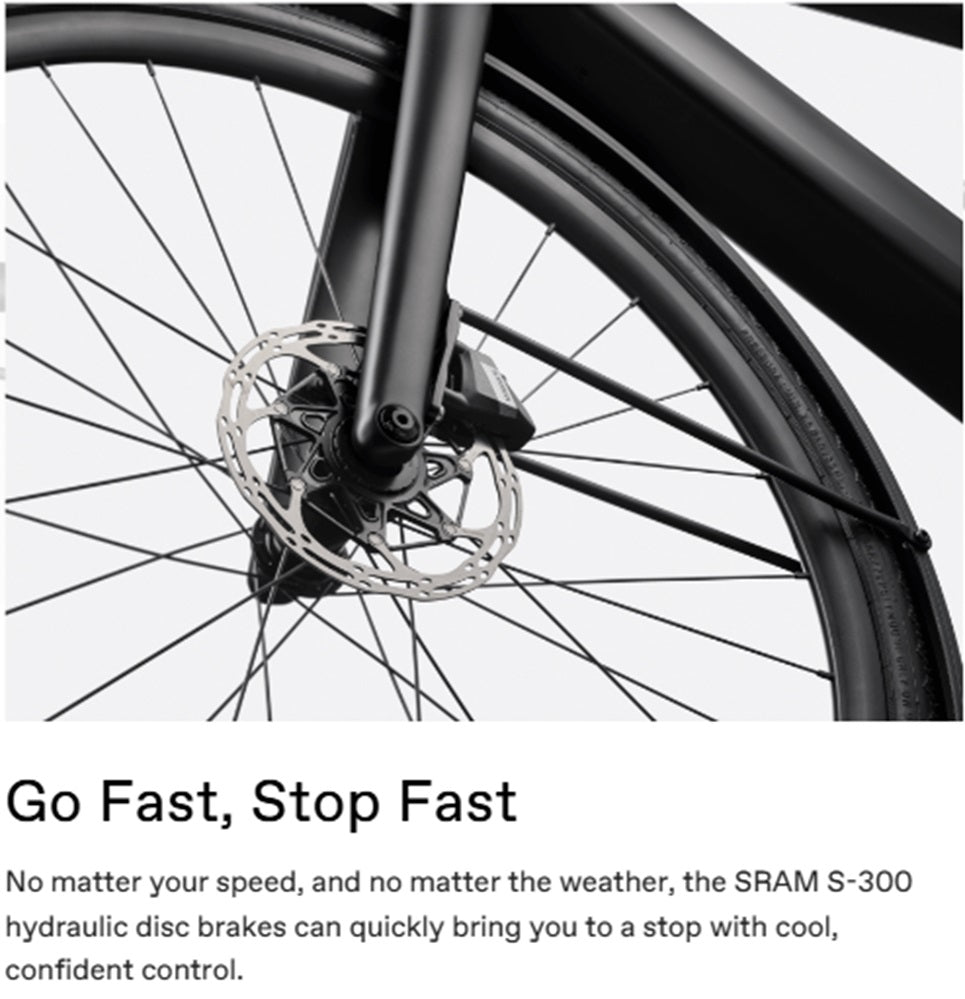

• Brakes - SRAM S-300, 160/160mm CenterLine X rotors
• Brake Levers - SRAM S-300 hydraulic disc

Wheels

• Rims - Cannondale GXD10, alloy double-wall rim, 28h
• Spokes - Stainless Steel, 14g
• Tire Size - 37
• Wheel Size - 700
• Hubs - (Front) Formula sealed cartridge bearing, 12x110mm thru-axle / (Rear) Formula sealed cartridge bearing 12x148mm thru-axle

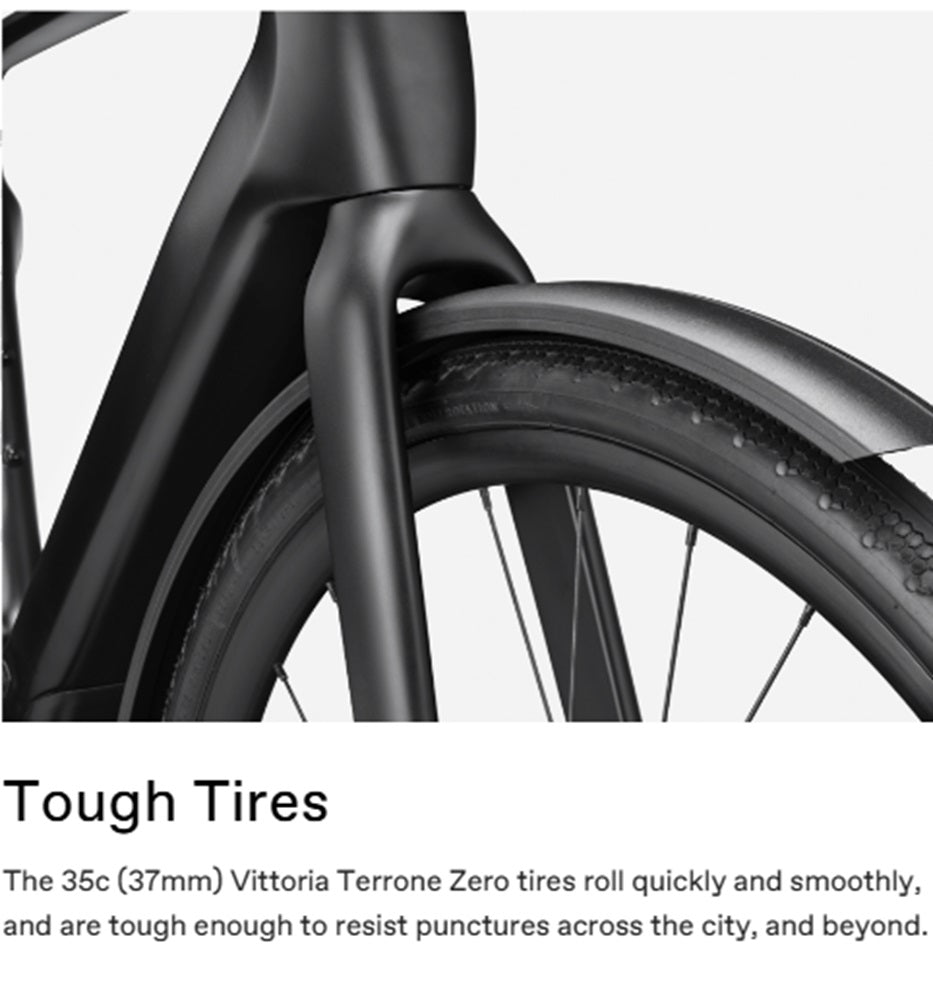

• Tires - Vittoria Terreno Zero, 700x35c

Components

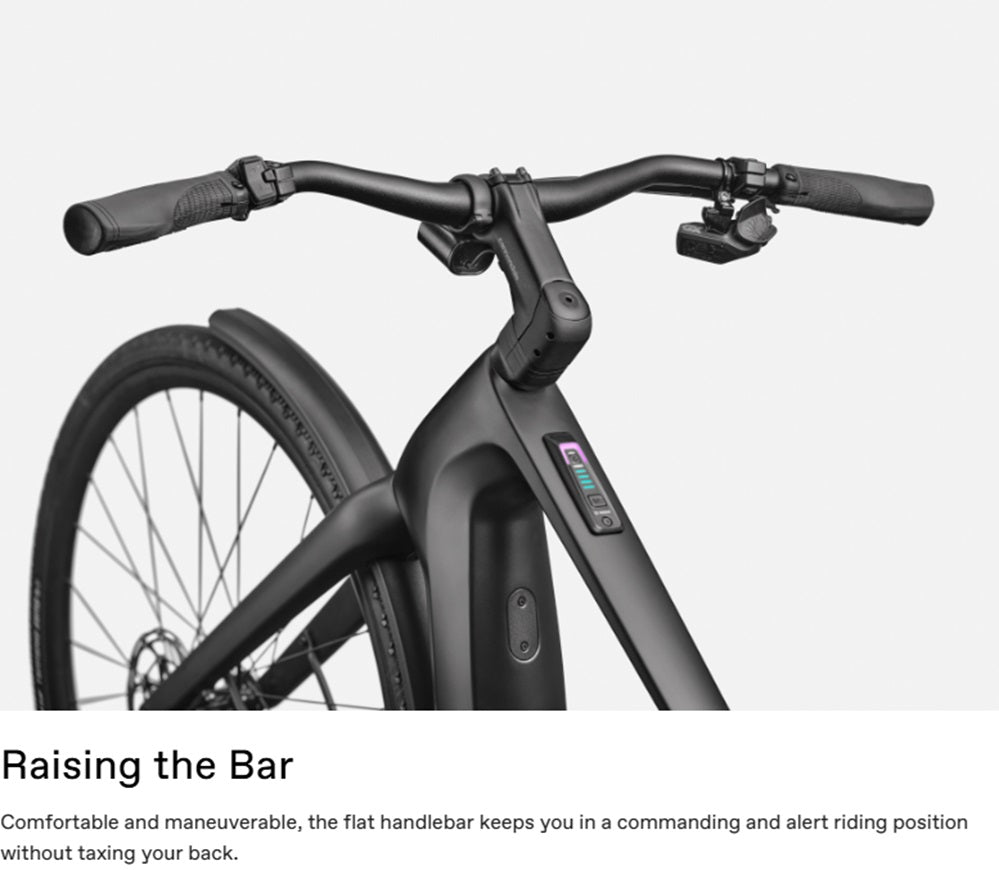

• Handlebar - 6061 Alloy, 31.8mm, 700mm, 7° rise
• Stem - Cannondale C1 Conceal, Alloy, 31.8, +6°
• Grips - Ergo Lock-on Grips
• Saddle - Selle Royal Vivo Active Ergo
• Seatpost - Cannondale 3, 6061 Alloy, 27.2x400mm

*Specifications subject to change without notice

*Mack Cycle recommends that you have your new Cannondale bike assembled at your local bike store.  Your store will charge an assembly fee.
