• Smiles for Miles - Kingpin is Cannondale's lightweight, go-for-longer rear suspension. Maintenance-free and complexity-free, it gives the Topstone frame legit rear-wheel travel without compromising stiffness for the sprint. Kingpin provides a smoother ride, more traction to push harder, and more give to take on the rough stuff. You’ll hardly know it’s there, but you’ll be very glad you’ve got it.
• Bring it All - Cannondale's all-new StashPort storage system in the downtube is designed to be concealed yet convenient. Paired with the special StashBag, you can bring your essentials along for the ride and know that they’ll be kept safe, whatever you get up to out there. Meanwhile, multiple mounting points on the frame, mean more gear and more adventures.
• Tuned Ride - A dialed-in ride, just for you. AKA: Proportional Response Construction. Everything from the carbon layup to the geometry on Topstone is individually tuned by frame size. So that the bike – including KingPin suspension – works in harmony to give you the best ride for you and your dimensions.

Specifications

• Platform - Topstone Carbon

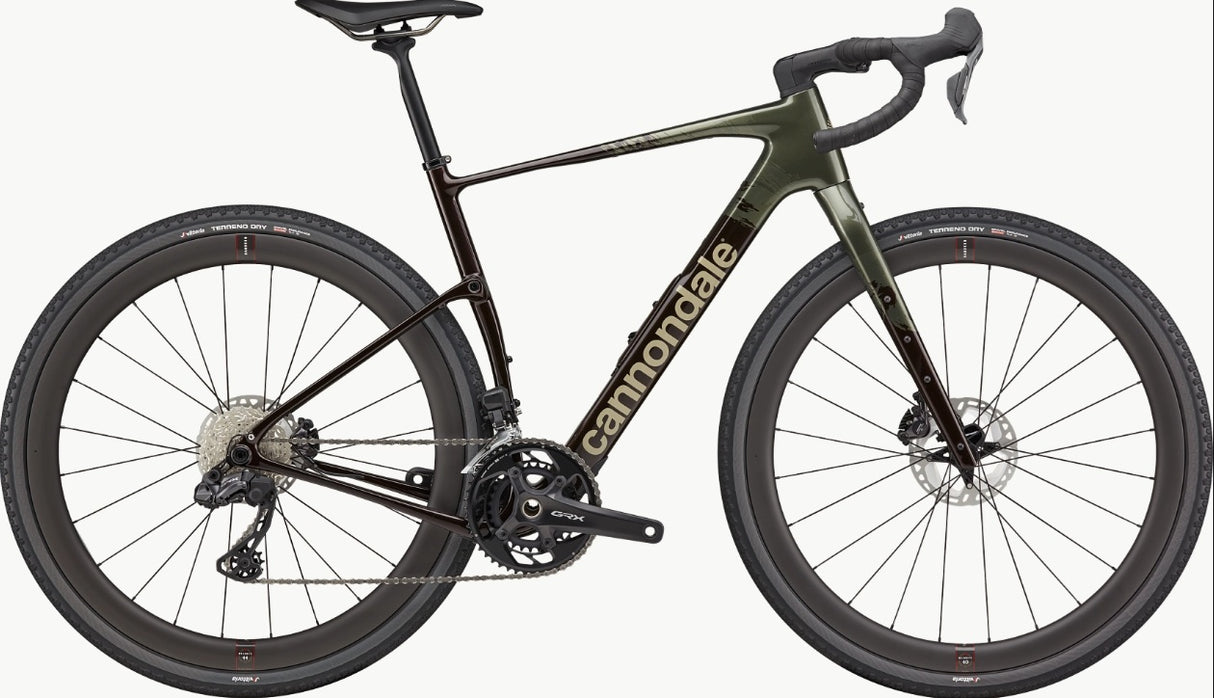

• Model Name - Topstone Carbon LTD Di2
• Model Code - C15145U

Frameset

• Frame - Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
• Fork - Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
• Headset - Acros IS52/40 ICR

Drivetrain

• Rear Derailleur - Shimano GRX 825, Di2, Shadow RD+
• Front Derailleur - Shimano GRX 825, Di2
• Shifters - Shimano GRX 825, Di2, 12-speed
• Chain - Shimano M8100, 12-speed
• Crank - Shimano GRX 820, 48/31
• Rear Cogs - Shimano Ultegra R8100, 11-34, 12-speed
• Bottom Bracket - Shimano BSA 68

Brakes

• Brakes - Shimano GRX RX820, 160/160mm MT800 centerlock rotors
• Brake Levers - Shimano GRX 825 hydraulic disc

Wheels

• Rims - Reserve 40 I 44 GR Carbon, Turbulent Aero Tech, 24h, tubeless ready
• Spokes - Sapim CX-Ray Aero straight pull
• Tire Size - 40
• Wheel Size - 700c
• Hubs - (Front) DT Swiss 240, 12x100mm centerlock / (Rear) DT Swiss 240, 12x142mm centerlock
• Tires - Vittoria Terreno T30, 700x45c, tubeless ready

Components

• Handlebar - Easton EC90 AX Carbon
• Stem - Cannondale C1 Conceal, Alloy, 31.8, -6°
• Grips - Cannondale KnurlCork, 2.7mm
• Saddle - Fizik Terra Argo X3, Kium rails
• Seatpost - Cannondale SAVE Carbon, 27.2x350mm (47-58), 400mm (61)
• Connectivity - Wheel Sensor

Extra

• Extra 1 - Large StashBag downtube storage bag, Reserve Fillmore tubeless valve stems, Shimano Di2 charger
• Color Option - MantisGray

Safety Information

• Ingestion Hazard - WARNING - INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

*Specifications subject to change without notice

• Mack Cycle recommends having your bike assembled by your local, authorized Cannondale retailer, who will charge an assembly fee.
